CDD-R1525 All-Terrain Electric Stacker 1500kg 2.5m Lift
Price:
£8,950.00
VAT excluded

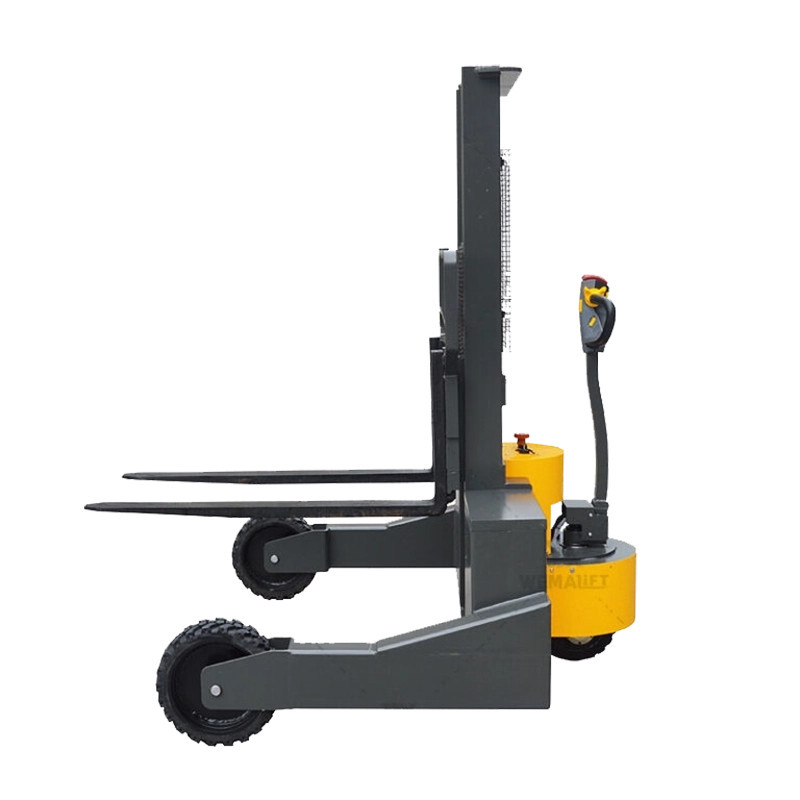

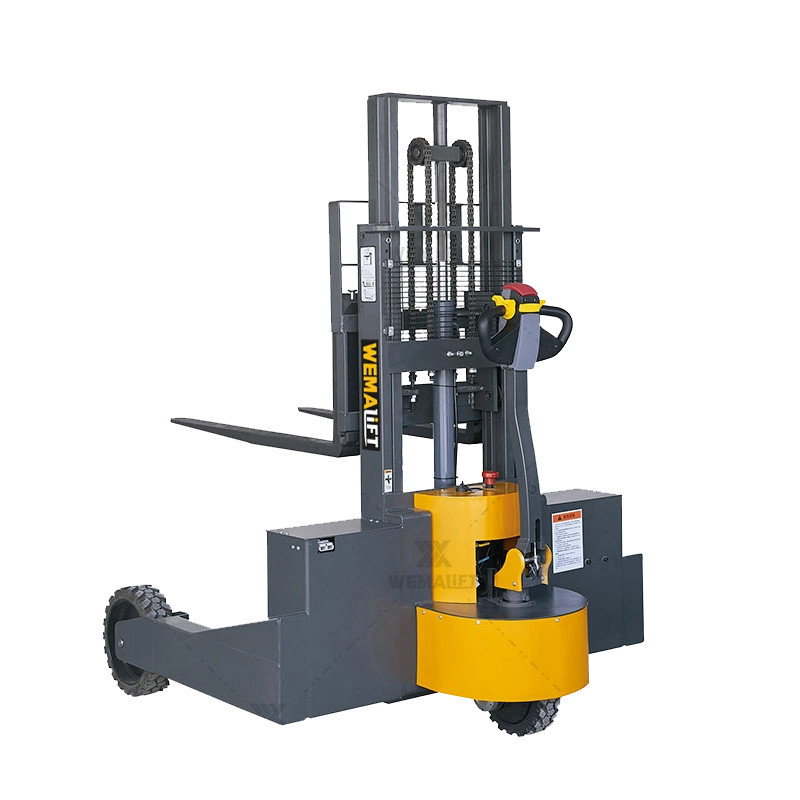

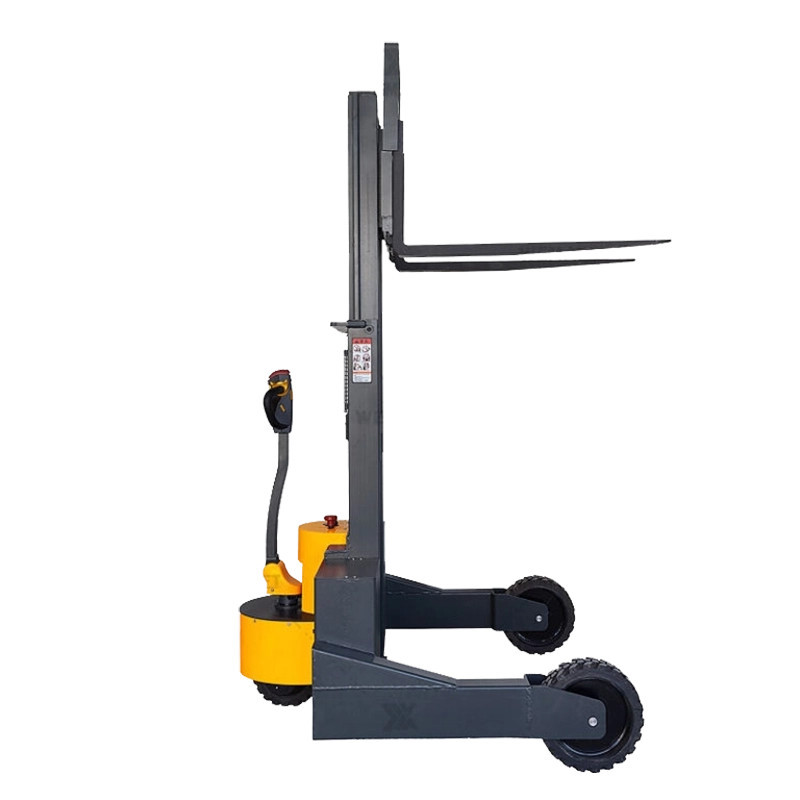

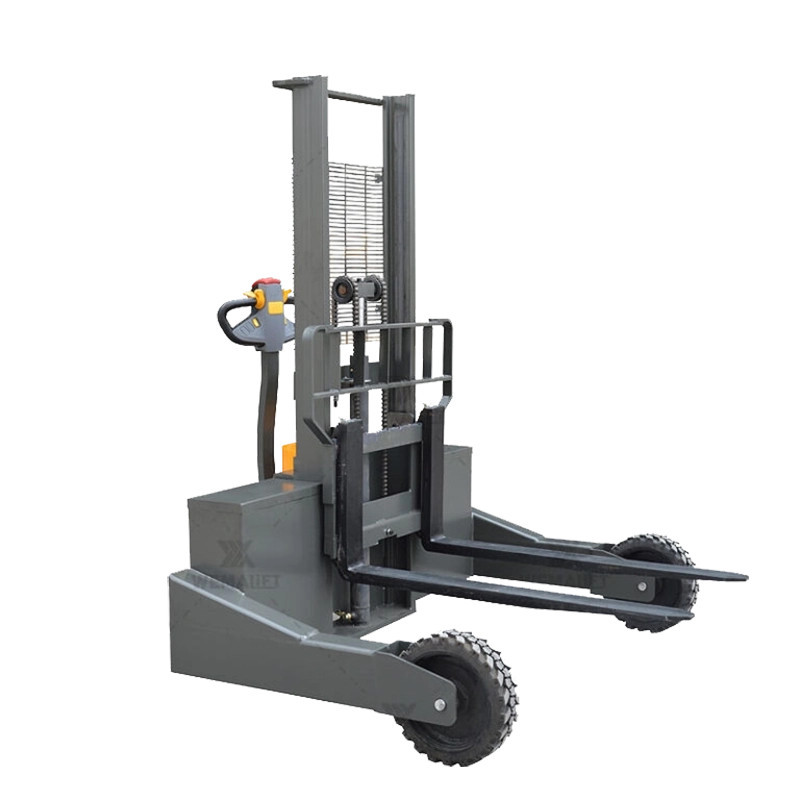

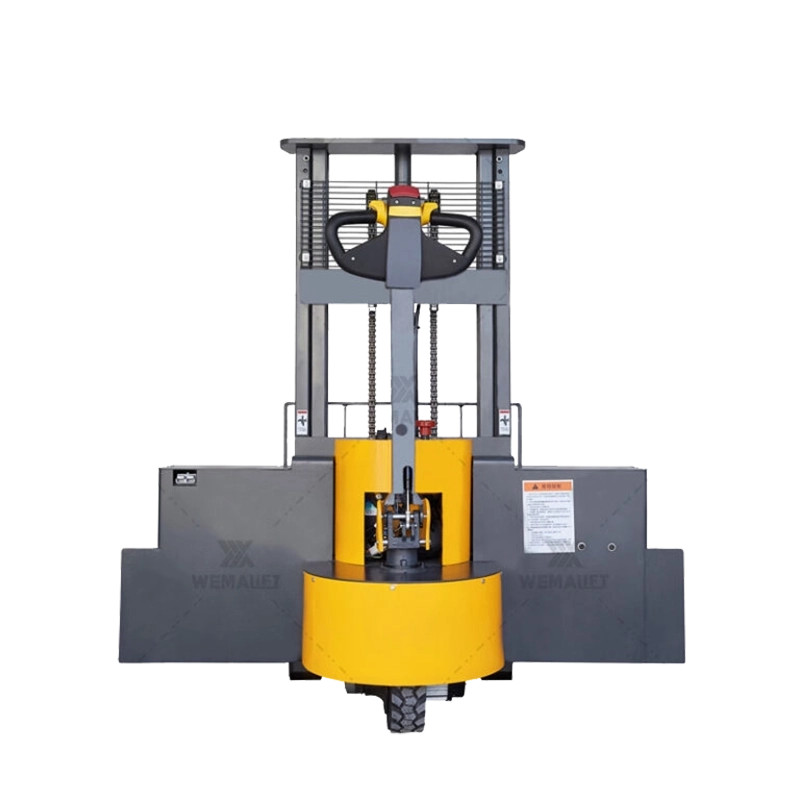

CDD-R1525 All-Terrain Electric Stacker 1500kg & 2.5m Lift
This is an all-terrain outdoor electric pallet stacker, with a sturdy and stable structural design.
It is suitable for rough outdoor surfaces such as construction sites and muddy areas.
Product Specifications
| Capacity | 1500Kg |
|---|---|
| Load Centre | 500mm |
| Net Weight | 790kg |
| Width Across Forks | 210mm - 960mm |
| Size of Forks | 1070mm x 100mm x 35mm |
| Min. Fork Height | 130mm |
| Max. Fork Height | 2500mm |
| Lowered Mast Height | 1830mm |
| Extended Mast Height | 3050mm |
| Overall Length | 1730mm |
| Overall Width | 1570mm |
| Turning Radius | 1355mm |
| Voltage | 24V / 120Ah |
| Min Aisle Width (1000 x 1200 pallet) | 2340mm |
| Drive Motor Rated output / DC motor | 1.5KW |
